| Specification | Description |
|---|---|
| Model | DELTA D10 |
| Control System | Automatic (hydraulic & electronic) |
| Boom Type | X-type folding boom |
| Spraying Width | 10 – 18 meters (depending on boom size) |
| Spraying Pressure | 2 – 20 bar |
| Tank Capacity | 600 – 1000 liters |
| Pump Type | Membrane or piston pump |
| Material | Polyethylene tank, stainless steel piping |
| Required Tractor Power | Minimum 40 HP |
| Weight | Approx. 300 – 450 kg (depending on model) |
| Mounting Type | 3-point hitch system |
| Wheels | Optional wheel types available |
| Application Area | Cereal crops, orchards, vegetables, cotton |
Purpose:

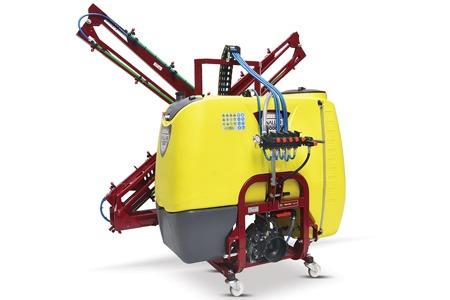

The DELTA D10 model is designed for agricultural use, particularly for spraying liquid pesticides and herbicides over large fields. Thanks to its X-type boom structure, it covers a wide area efficiently and speeds up the spraying process.
Key Features:
Automatic Control System – Operates in synchronization with the tractor, requiring minimal operator intervention.
X-Type Boom Mechanism – Enables wide-area coverage with each pass.
Even Distribution Technology – Ensures efficient and uniform application of chemicals to crops and soil.
High-Pressure Pump System – Provides fine mist spraying for maximum effectiveness.
Durable, Corrosion-Resistant Materials – Tank and piping are made of high-quality, chemical-resistant materials for long-term use.
