| Feature | Specification |
|---|---|
| Number of Tines | 13 |
| Number of Rows | 1 |
| Working Width | ~250–300 cm |
| Working Depth | 10–20 cm (adjustable) |
| Required Tractor Power | Minimum 60–80 HP |
| Hitch Type | 3-point mounted |
| Harrow Type | Rotary (spring or chain variants) |
| Weight | ~450–650 kg |
| Material | Reinforced structural steel |

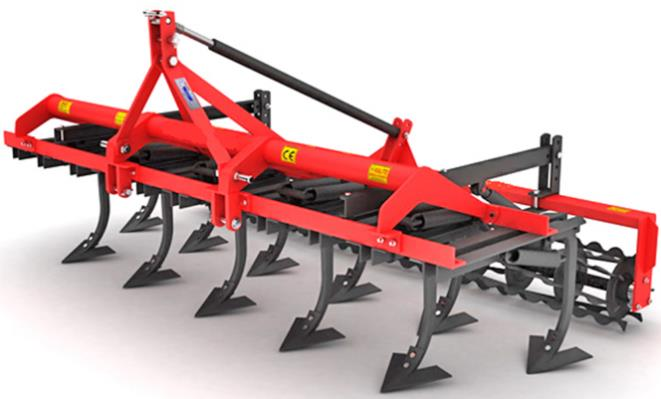

The 13-tine, 1-row cultivator with rotary harrow is designed for soil loosening, aeration, weed removal, and leveling the soil surface. The rotary harrow attached to the back helps to break up clods and evenly distribute the soil. It is especially suitable for grain, maize, and vegetable fields.
Purpose: Soil cultivation, weed control, and seedbed preparation
Number of Tines: 13 (spring or rigid types)
Row Configuration: 1 row (inline setup)
Rear Attachment: Rotary harrow for clod breaking and leveling
Working Principle: Pulled by a tractor to loosen and level the soil
Optional Features: Depth control wheels, adjustable tine spacing
