| Feature | Specification |
|---|---|
| Number of Tines | 13 |
| Number of Rows | 2 |
| Working Width | ~250–300 cm |
| Working Depth | 10–20 cm (adjustable) |
| Required Tractor Power | Minimum 70–90 HP |
| Hitch Type | 3-point mounted |
| Harrow Type | Rotary harrow |
| Number of Rollers | 2 (tube-type or solid metal) |
| Weight | ~600–800 kg |
| Material | Reinforced structural steel |

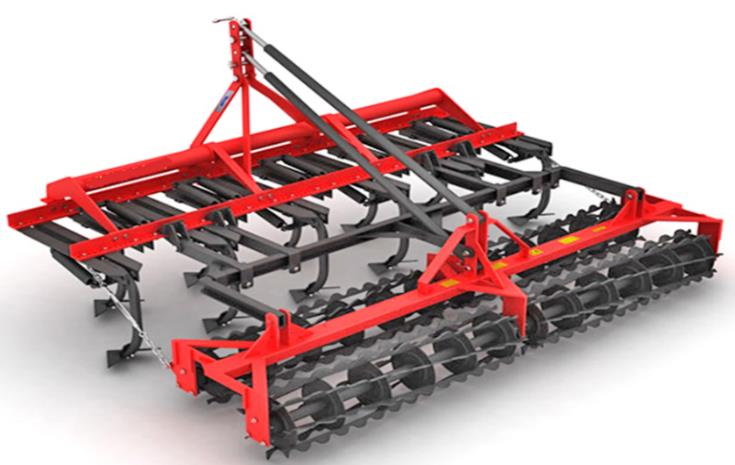

This cultivator is designed for effective soil cultivation, weed control, and seedbed preparation. The 13 tines arranged in 2 rows allow for deeper and more uniform soil processing. The rotary harrow at the back, combined with 2 rollers, ensures thorough soil breakdown, leveling, and surface compaction. It is ideal for preparing fields for cereals, vegetables, and industrial crops.
Purpose: Soil cultivation, weeding, and field leveling
Number of Tines: 13 (spring-loaded or rigid)
Row Configuration: 2 rows (staggered for better efficiency)
Rear Attachments: Rotary harrow + 2 rollers (for soil compaction and leveling)
Working Principle: Pulled by a tractor to till, crumble, level, and compact soil in one pass
Extras: Adjustable tine spacing, depth control wheels
